Feature

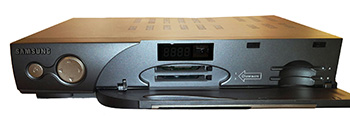

DSR 9500AY Digital Satellite Receiver
• Viaccess and Conax Embedded
• Dual Common Interface Slots
• DVB Compliant
• Software Download via Satellite IOTA)
• Full 7 days Electronic Program Guide (EPG) on screen program
• Channel Sorting based on Favorite4ist, Provider list, Alphabetical order, Transponder list
• Digital Audio Optical Output (SPDIF)
Fabriksny i kartong.

Demo-ex.

I nyskick.

Hämtpris i Mölndal 400:-

Frakt 149:- med PostNord.

Feature
250 MHz PowerPC processor
Enigma, Linux operating system
Condition 2 LED
MPEG-2 Hardware decoding
Common available NIMs (DVB-S, DVB-C, DVB-T)
The tuner module, plug and play
1 x smart card reader (Dreamcrypt CA)
V.24 / RS232 interface
10 / 100Mbit interface compatible Ethernet
1 x Scart-interfaces (RGB, FBAS or S-Video)
S-Video connector
analog modem
The interface S / PDIF for digital bit stream out (AC-3)
32 MB flash, 96 MB Ram
Embedded IDE interface
Support for internal 2.5 HDD “in any capacity
unlimited channel lists for TV / Radio
channel-change time <2 January
automatic scanning service
Immediately bouquet-lists
EPG (electronic program guide)
Videotext Decoder
multiple LNB-Switching control (DiSEqC)
OSD in many languages ​​and skins support
extern12V food

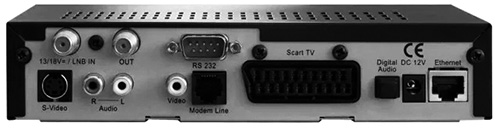

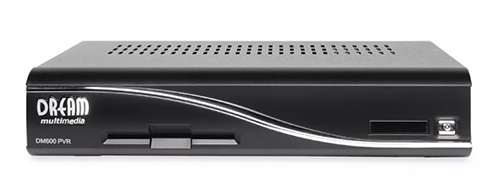

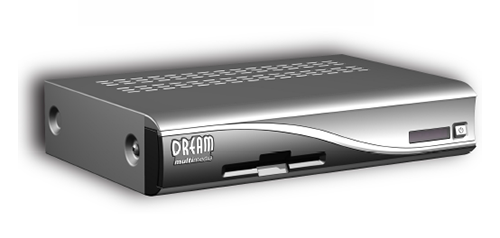

DreamBox DM600 technical data

DBS-Tuner:
Frequency range 950 …. 2150 MHz
Signal Level – 65 dBm …. – 25 dBm
The signal-to-noise level of 12 dB max.
DBS-Tuner Input Connector F-Type female
Input impedance 75 ohms
AFC +/- 3 MHz
Shaped QPSK demodulation
Viterbo FEC and Reed-Solomon
Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8
Skruhlenyya ratio 35%
Demultypleksyrovanye to ISO 13818-1

Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible
Video Standard PAL G / 25 Hz
Video Formats 4: 3/16: 9
Letterbox for 4: 3 TV devices

Audio decoder:
Audiokompression MPEG-1 and MPEG-2 Layer I and II
Sound Mode Dual (master / slave), stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Analog output:
Output level L / R 0,5 Vss on 600 Ohm
THD> 60 dB (1 kHz)
Crosstalk <-65 dB

Digital Output:
The level of output 0.5 Vss to 75 Ohm
Selective Filtering data 32 kHz, 44.1 kHz, 48 kHz
S / PDIF-out optical (AC3)

Video Options:
Input level FBAS 1 Vss +/- 0,3 dB at 75 ohms
Teletext filter in accordance with ETS 300 472 Standard

TV-Scart:
Output: FBAS, RGB, S-Video

Serielle Interface RS 232
Type bidirectional RS232
The flow of 115.2 kbit / s max.
Connector SUB-D-9
Function: Firmware Updates

Ethernet:
10/100 MBit compatible interface
Function: Firmware Updates

IDE interface:
Intern for connect 2,5 “HDD

LNB Power and polarization:
LNB present 500mA max. ; Protection against short-circuit protected
LNB Supply Voltage vertical <14V without load,> 11,5V at 400mA
LNB Supply Voltage horizontal <20V without load,> 17,3V at 400mA
LNB shut-off in standby mode

Count of active satellite position:
DiSEqC 1.0 / 1.1 / 1.2 and USALS (Rotor Control)

Power consumption:
<15W / 12V

Input voltage:
DC12V +/- 15%

External supply:
Login: 110-240V AC / 50-60 Hz / 0,6A
Output: 12V = / 2A

Physical characteristics:
Ambient temperature + 15 ° C … + 35 ° C
Humidity <80%
Dimensions (W x D x H): 195 mm x 130 mm x 40 mm
Weight: 0.6 kg

Feature

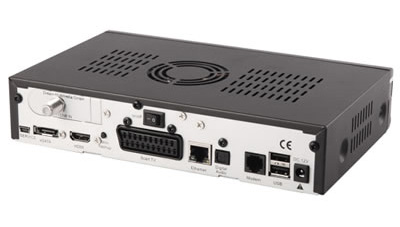

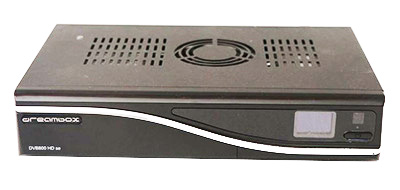

Technical data
• 400 MHz MIPS Processor
• Linux operating system
• colored OLED display
• MPEG2 / H.264 Hardware decoding (DVB compliant)
• Tunervariations: DVB-S/S2, DVB-C, DVB-T
• Tuner Module, Plug&Play
• 2x Smartcard-Reader (Dreamcrypt CA)
• Mini-USB Service-Port
• 10/100 Mbit compatible Ethernet Interface
• 1 x Scart-Output (RGB, FBAS or S-Video)
• HDMI
• 2x USB 2.0 port
• Analog Modem
• S/P-DIF optical digital audio out
• 64 MByte Flash
• 256 MByte RAM
• Internal SATA Connector: Support for all regular hard disks (2,5" SATA)
• eSATA connector
• External 12V power supply
• EPG-Support (Electronic Program Guide)
• Integrated Teletext
• Support for DiSEqC™ 1.0/1.1/1.2 and USALS
• Multi-Language OSD

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB
Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink
Output Video:
Outputlevel FBAS 1 Vss +/- 0.3 dB an 75 W

Enkel installation utan lödning (Plug and Play)
Plug & Play innebär att du lätt kan byta mellan satellit-, mark- och kabeltuner.

Enkel installation utan lödning (Plug and Play)
Plug & Play innebär att du lätt kan byta mellan satellit-, mark- och kabeltuner.
